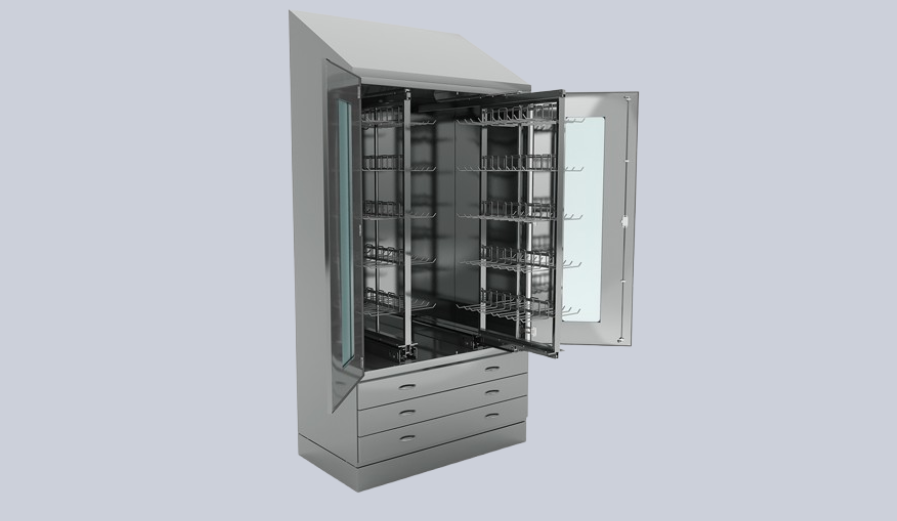

Storage Cabinet

A Storage Cabinet for the pharmaceutical industry is specifically designed to meet stringent requirements for hygiene, organization. These cabinets are essential for storing pharmaceutical parts, raw materials, tools, or components in compliance with industry regulations like GMP (Good Manufacturing Practices).

Pharmaceutical design guidelines also followed to focus on easy cleaning, good accessibility, ease of use and good visibility right from the design stage, so that dirt or danger spots can be easily identified.

Key Features of Format Part Storage Cabinet:

  • Modular Concept: It is possible to fit pull-out drawers and/or shelves individually or in combination, as required. Pitch 150mm.
  • Storage Variants: 1) pull-out drawer with partial extract 75%. 2) Shelf with inclination 10° . 3) Shelf with flat.
  • Handling: Stable standing and moving on 2 fixed castors and 2 swivel castors with lock, ground clearance at least 100 mm, 2x handle f or moving
  • Cleaning: Drawer / Shelves / format part insert, can be removed without tools.
  • Housing: Can be washed out wet with appropriate drainage options. Elevators
  • Resilience: per drawer at least 50 kg for a height of 140 mm and 75 kg for a height of 280 mm max. permissible deflection of the shelves 5 mm.
  • Installation Space: W=1500 mm H= 1700 mm T= 850 mm.
  • Construction: Constructed in SS316L with smooth surfaces, rounded edges & corners for easy cleaning.
  • Special Features: Lockable arrangement for drawers/shelfs. As soon as more than one drawer is installed, only one drawer can be pulled out at a time.

Applications:

  • Storing raw materials (e.g., active pharmaceutical ingredients).
  • Format parts storage.
  • Organizing tools, equipment, and testing kits.

Parts of storage cabinet:

  • Frame (Housing).
  • LH & RH door.
  • Multiple height Drawers
  • Inclined Shelf.
  • Flat Shelf.
  • Guide rollers Assembly
